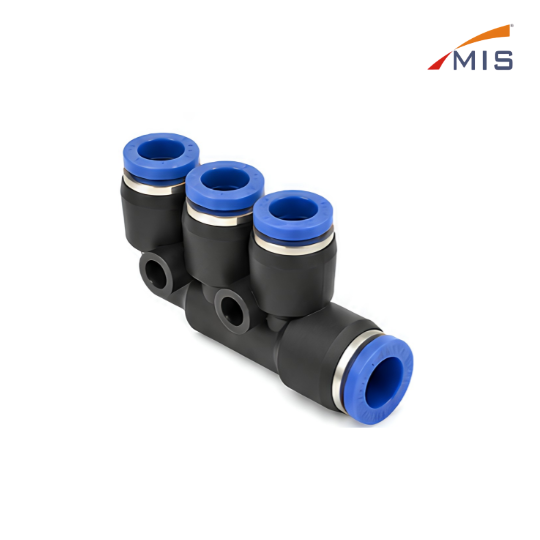

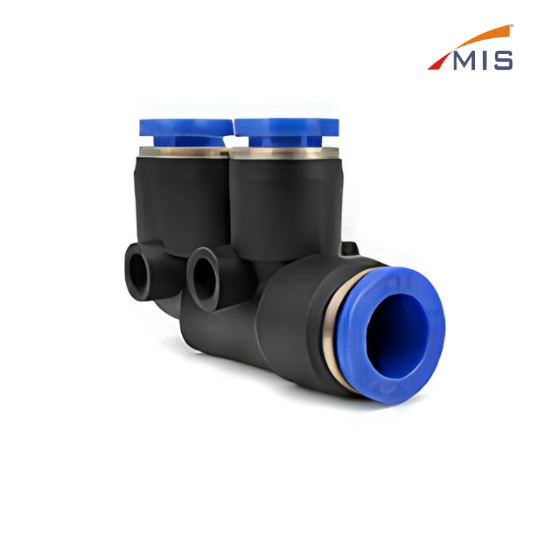

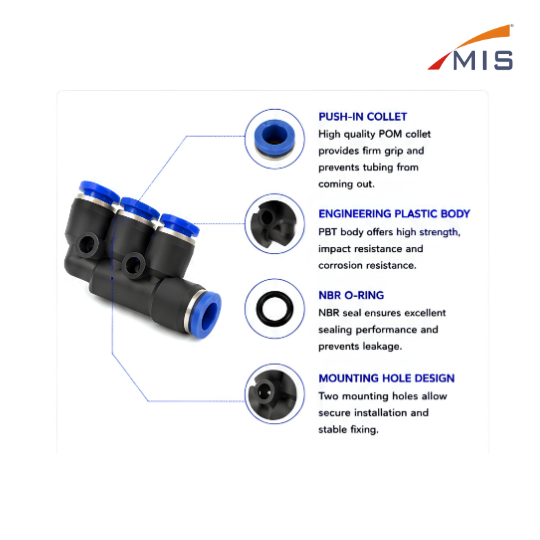

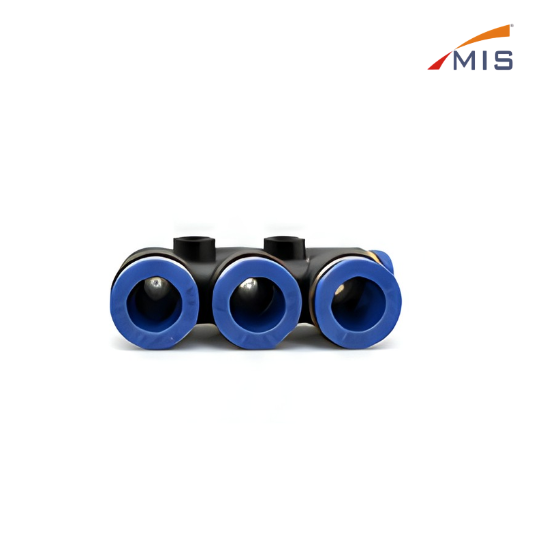

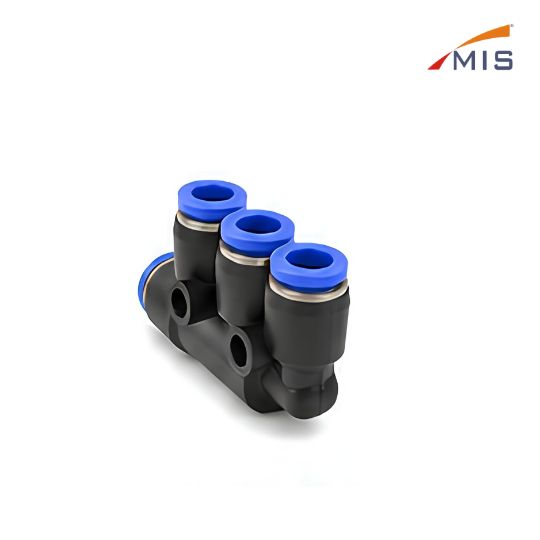

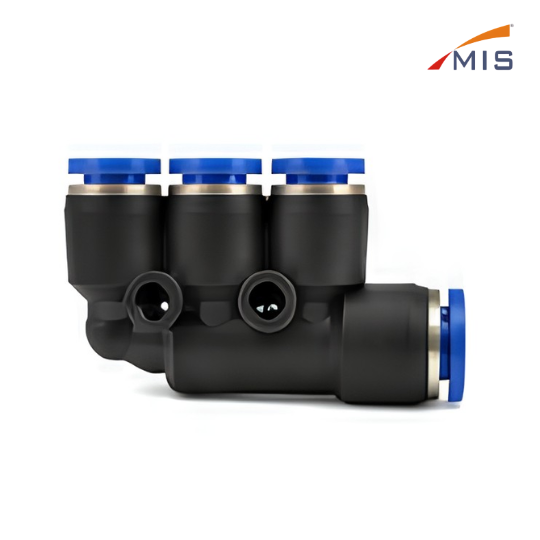

The SPK Triple Branch Union Connector is a high-quality push-in pneumatic fitting designed to distribute compressed air or vacuum through one inlet and three outlet connections of equal tube size. Manufactured from durable engineering-grade PBT (Polybutylene Terephthalate) with precision POM collets and NBR sealing rings, it provides secure, leak-proof performance in demanding industrial environments. The one-touch push-in design enables quick installation and easy tube removal without special tools, reducing maintenance time and improving operational efficiency. Its compact and lightweight construction allows efficient use of space while ensuring excellent strength, impact resistance, and long service life. The integrated mounting holes provide stable and secure installation, making it suitable for fixed pneumatic circuits. Compatible with PU, Nylon, and PE tubing, the SPK Triple Branch Union Connector is widely used in pneumatic systems, industrial automation, packaging machinery, textile machinery, automotive equipment, and machine tools where reliable air distribution and durable performance are essential.
Body Material
:
Engineering Plastic (PBT)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon / PE
Connection Type
:
Push-in
Mounting Type
:
In-line (Two Mounting Holes)
Media
:
Compressed Air, Vacuum
Color
:
Black Body with Blue Collet
