U SERIES (SMC TYPE)

U SERIES (SMC TYPE)

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

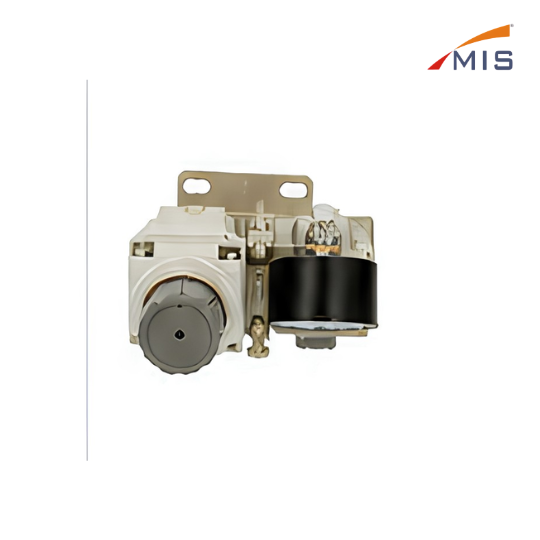

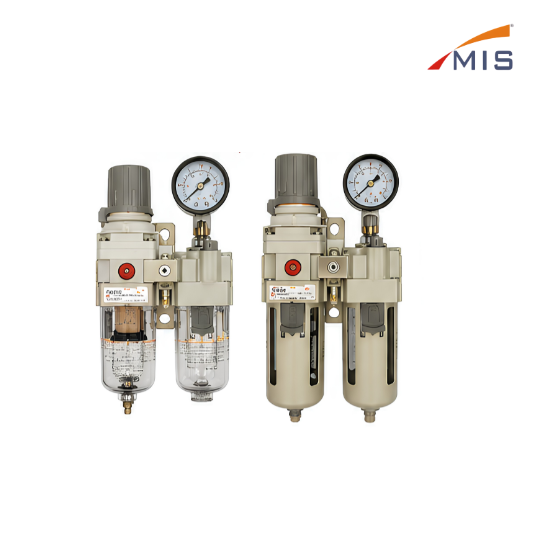

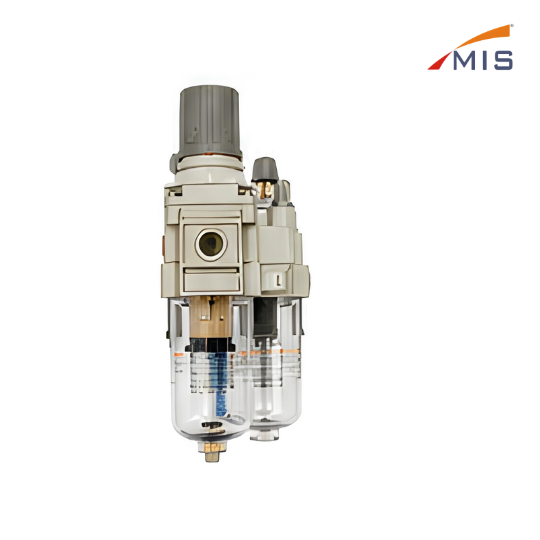

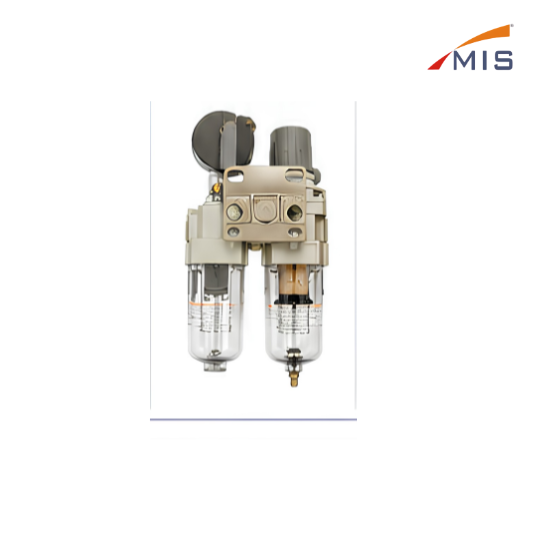

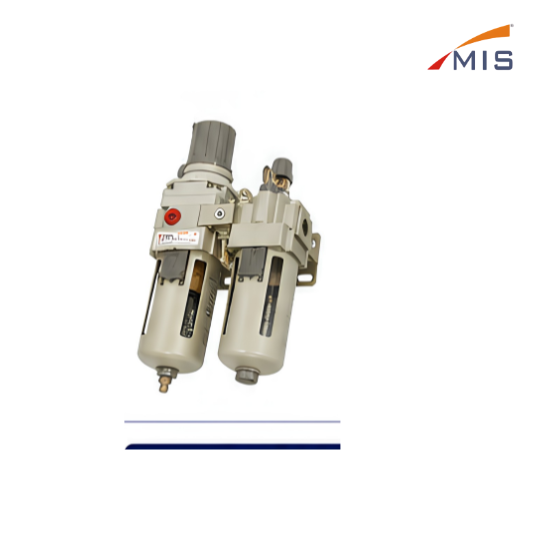

Regulator and Lubricator in a modular design to provide clean air, accurate pressure regulation and proper lubrication for pneumatic systems. Equipped with metal guard and pressure gauge for enhanced protection and easy monitoring.

Specifications

 Model Series
:
U Series (SMC Type)
Type
:

Filter + Regulator + Lubricator

 Max. Operating Pressure
:
1.0 MPa (10.2 kgf/cm²)
 Proof Pressure
:
1.5 MPa (15.3 kgf/cm²)
 Pressure Regulating Range
:
0.05 0.85 MPa (0.5-8.5 kgf/cm²)
 Max. Operating Temperature
:
60°C
 Filtration
:
5 Micron (Standard)
 Bowl Material
:
Polycarbonate (Standard)
 Guard
:
Metal Guard (Standard)
 Drain Type
:
Semi-Auto (Standard)
 Mounting Type
:
Bracket / Panel Mount
 Fluid
:
Compressed Air
 Weight (Approx.)
:

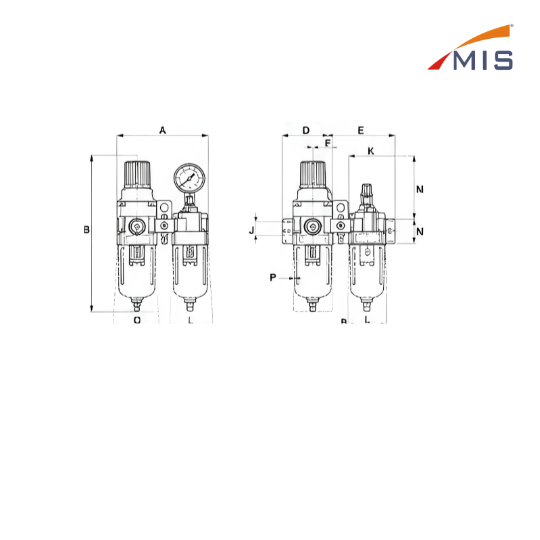

See Dimension Table.
