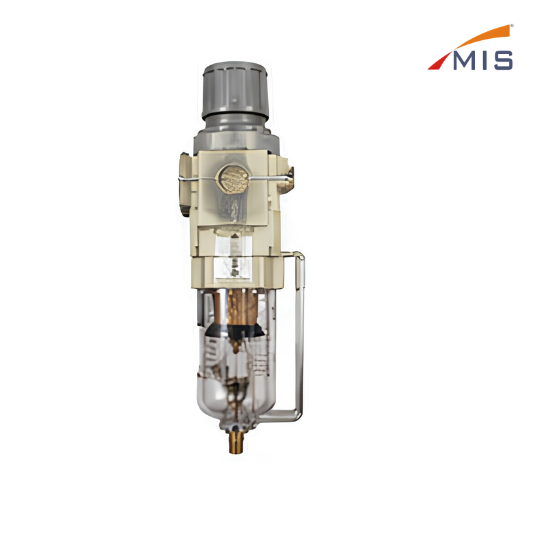

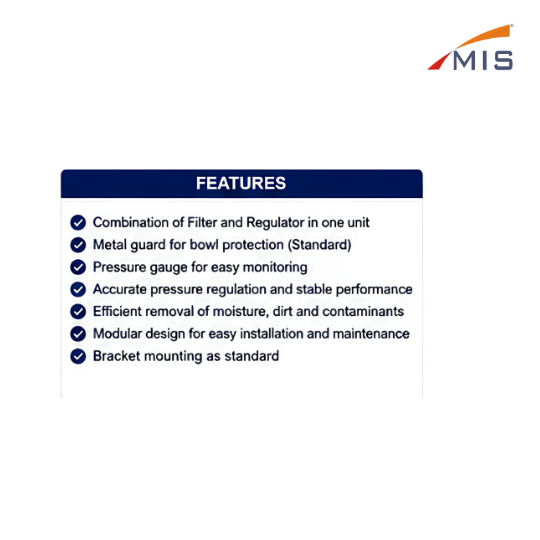

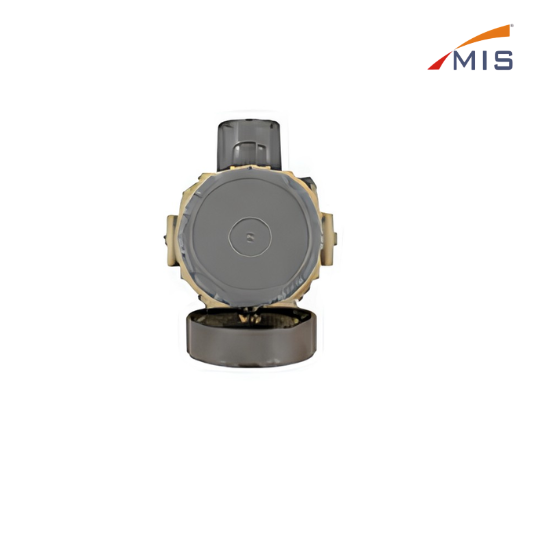

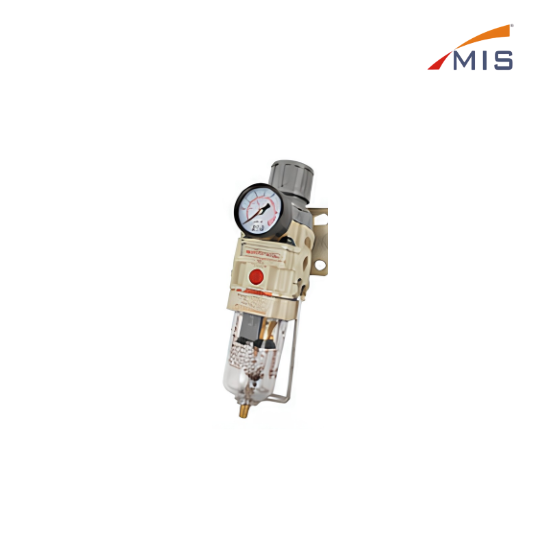

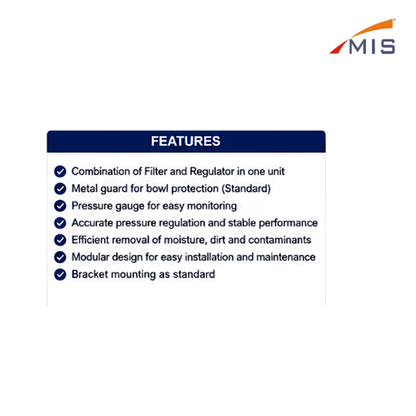

The UFR Series Filter Regulator is a high-performance air preparation unit designed to deliver clean, dry, and accurately regulated compressed air for pneumatic systems. Combining filtration and pressure regulation in a single compact assembly, it effectively removes moisture, dust, and contaminants while maintaining consistent air pressure for smooth and efficient operation. Equipped with a durable metal guard, integrated pressure gauge, polycarbonate bowl, and mounting bracket, the UFR Series offers reliable performance, enhanced protection, and easy monitoring. Its modular design ensures quick installation and simple maintenance, making it ideal for use in pneumatic systems, air tools, industrial automation, packaging machinery, textile machinery, and assembly lines. Built for durability and long service life, the UFR Series helps improve system efficiency, protect pneumatic components, and reduce maintenance requirements in demanding industrial environments.
Port Size
:
1/4", 3/8", 1/2"
Type
:
Filter + Regulator (Modular Type)
Max. Operating Pressure
:
1.0 MPa (10.2 kgf/cm²)
Proof Pressure
:
1.5 MPa (15.3 kgf/cm²)
Pressure Regulating Range
:
0.05 0.85 MPa (0.5 - 8.5 kgf/cm²)
Max. Operating Temperature
:
60°C
Filtration
:
5 Micron (Standard)
Bowl Material
:
Polycarbonate
Guard
:
Metal Guard (Standard)
Drain Type
:
Semi-Auto (Standard)

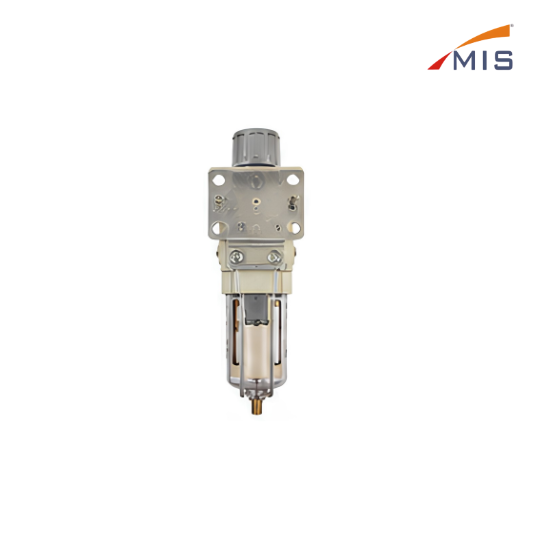

Mounting Type
:
Bracket Mount
Weight (Approx.)
:

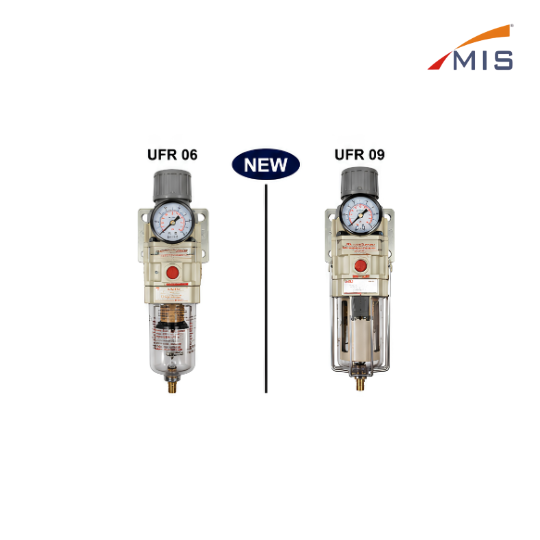

UFR 06: 430 g / UFR 09: 700 g UFR 10: 740 g / UFR 12: 1,000 g
