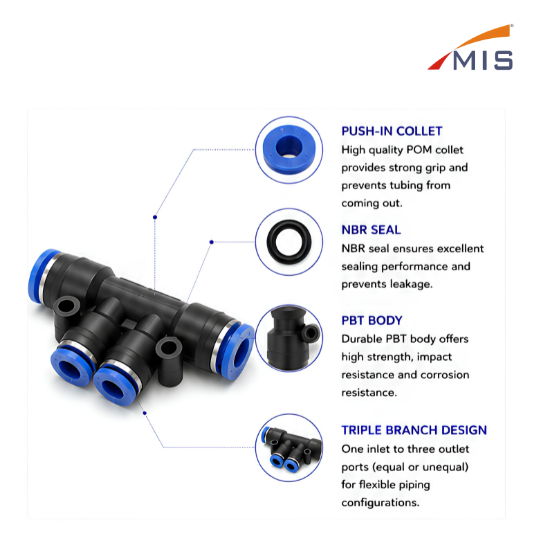

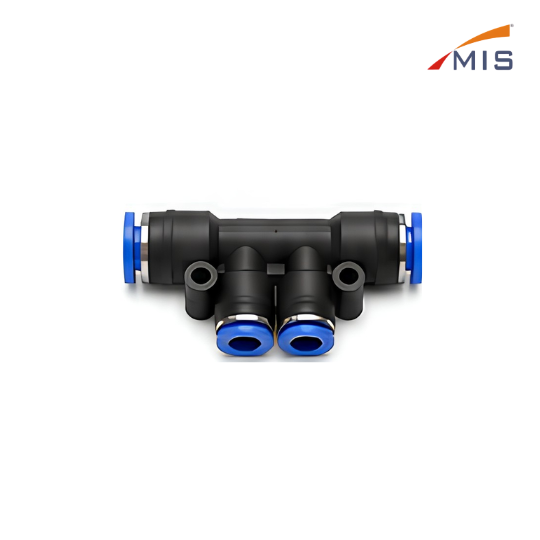

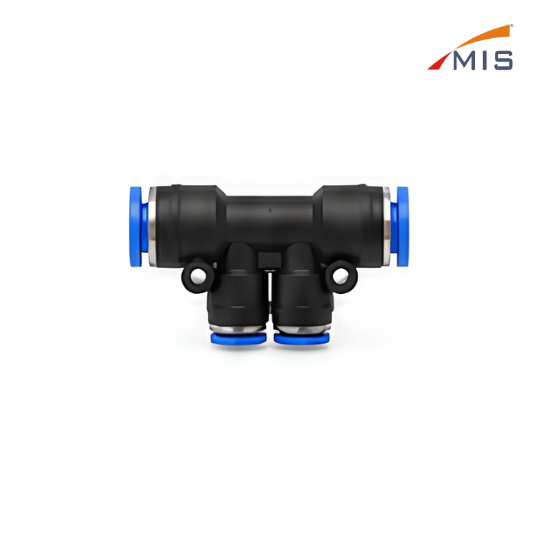

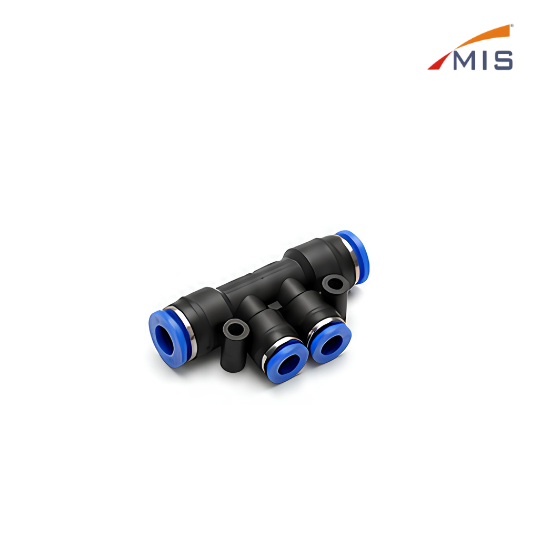

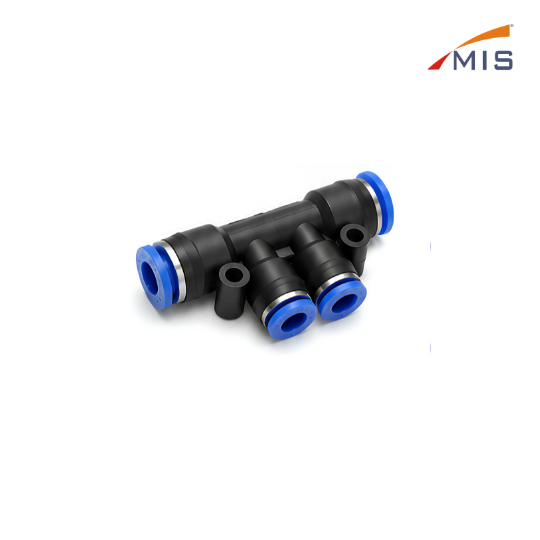

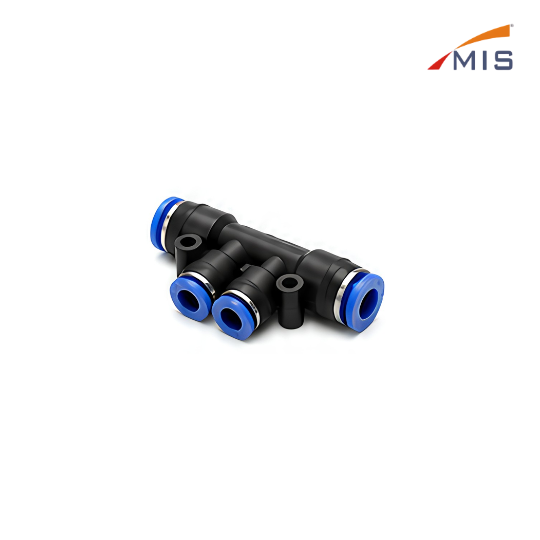

The Unequal Triple Branch Reducer (SPKG) is a high-performance push-in pneumatic fitting designed to connect one inlet tube to three outlet tubes with equal or reduced tube sizes. Manufactured from premium quality PBT (Polybutylene Terephthalate) engineering plastic with a precision POM collet and NBR sealing system, it ensures secure, leak-proof, and long-lasting pneumatic connections. The push-in design allows quick installation and easy tube removal without the need for special tools, reducing maintenance time and improving operational efficiency. Its compact and lightweight construction makes it ideal for space-saving pneumatic systems while maintaining excellent strength, impact resistance, and durability. Designed for compressed air and vacuum applications, the fitting delivers reliable performance under working pressures up to 10 Bar. The triple branch configuration enables efficient air distribution to multiple outlets while accommodating different tube sizes for flexible system design. Suitable for PU, Nylon, and PE tubing, the SPKG fitting is widely used in pneumatic systems, industrial automation, packaging machinery, textile machinery, automotive equipment, and machine tools. It provides dependable sealing performance, efficient airflow distribution, and long service life in demanding industrial environments.
Body Material
:
PBT (Polybutylene Terephthalate)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature :
:
0°C to 60°C
Applicable Tube
:
PU / Nylon / PE
Connection Type
:
Push-in
Color
:
Black Body with Blue Collet
