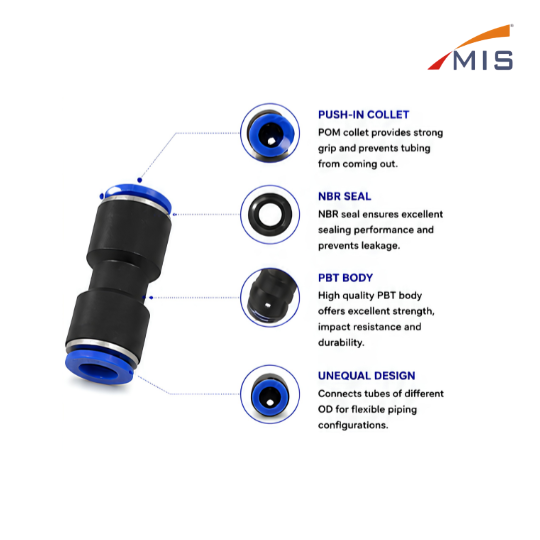

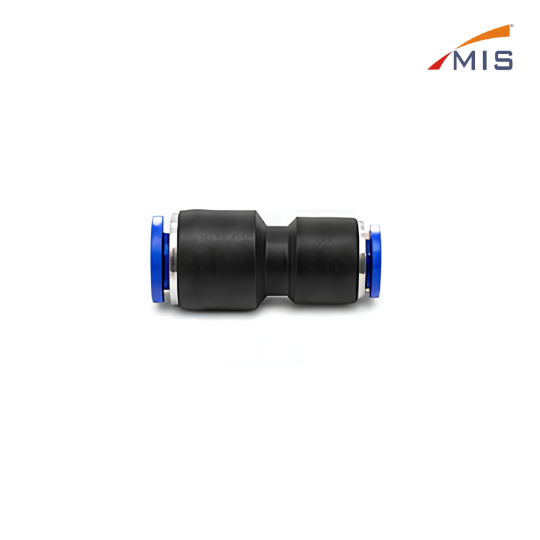

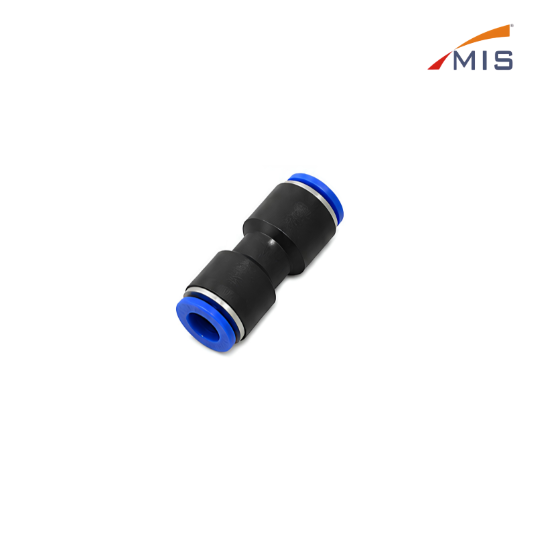

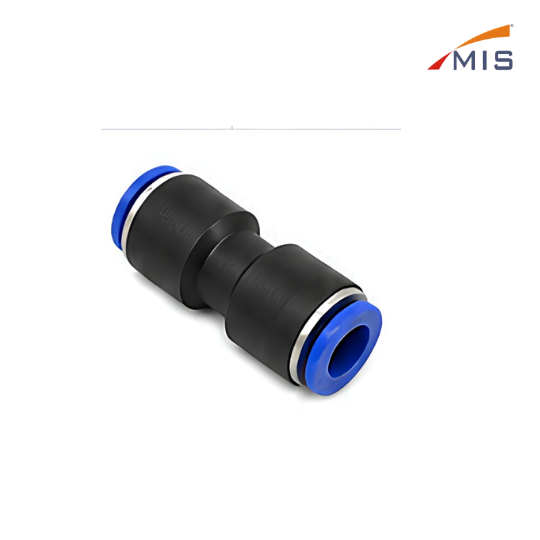

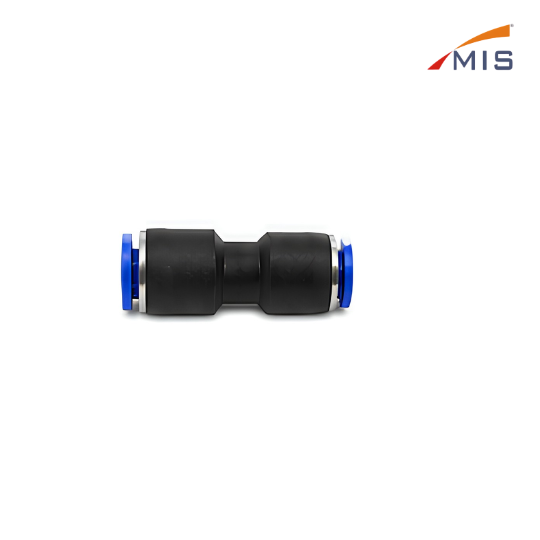

The Unequal Union Straight (SPG) is a high-performance push-in pneumatic fitting designed to connect tubes of different outer diameters in a straight-line configuration. Manufactured using a durable PBT (Polybutylene Terephthalate) body with a precision-engineered POM collet and NBR sealing system, it ensures secure, leak-proof, and reliable pneumatic connections. The push-in design allows quick installation and easy tube removal without the need for special tools, reducing maintenance time and improving operational efficiency. Its compact and lightweight construction makes it ideal for space-constrained pneumatic systems while maintaining excellent strength and durability. Designed to handle compressed air and vacuum applications, the fitting provides stable performance under working pressures up to 10 Bar. Suitable for PU, Nylon, and PE tubing, the Unequal Union Straight fitting is widely used in industrial automation, pneumatic systems, packaging machinery, textile machinery, automotive equipment, machine tools, and material handling systems. It offers excellent sealing performance, long service life, corrosion resistance, and dependable operation in demanding industrial environments.
Body Material
:
PBT (Polybutylene Terephthalate)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon/PE
Connection Type
:
Push-in
Media
:
Compressed Air, Vacuum
Color
:
Black Body with Blue Collet
