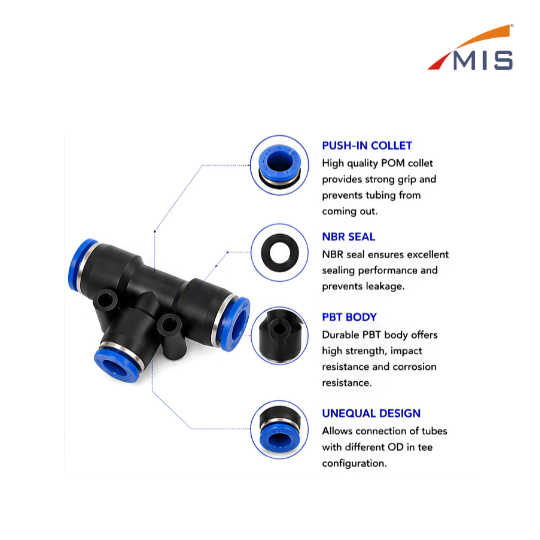

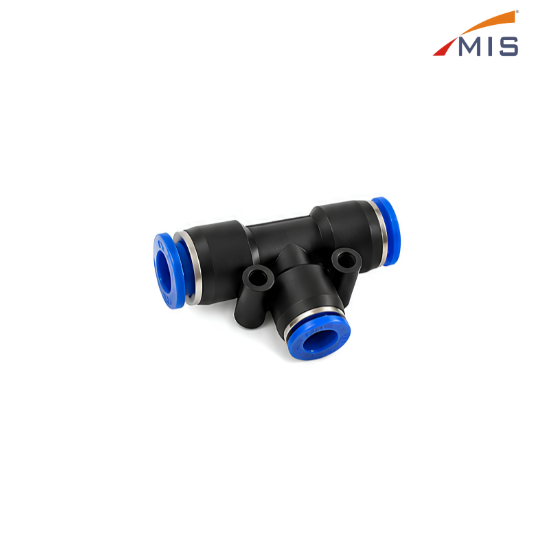

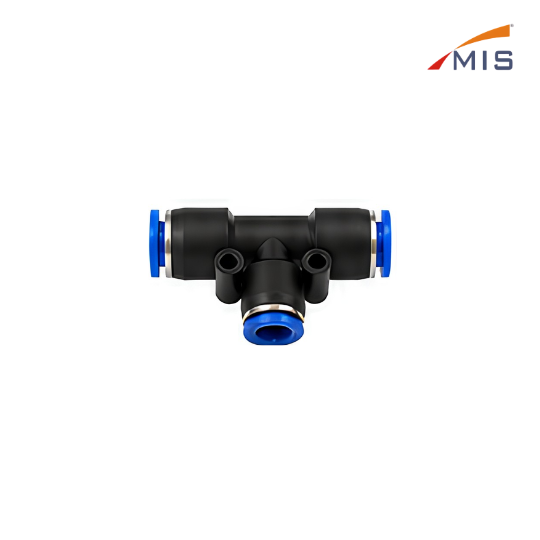

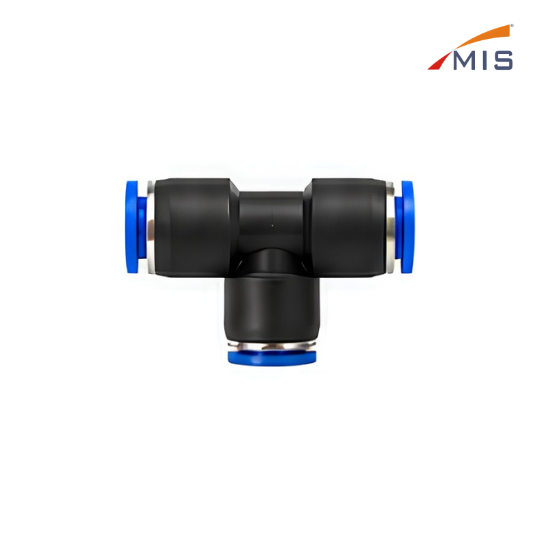

The SPTG / SPGT Unequal Union Tee Connector is a push-in pneumatic fitting designed to connect tubes of different outer diameters in a tee configuration. Manufactured from high-quality PBT engineering plastic with durable POM collets and NBR seals, it provides secure tube retention, excellent leak-proof performance, and long service life. Its compact and lightweight design enables quick installation and easy tube removal without special tools, making it ideal for space-saving pneumatic systems. Suitable for compressed air and vacuum applications, the SPTG / SPGT connector is widely used in industrial automation, packaging machinery, textile machinery, automotive equipment, and machine tools, ensuring reliable airflow distribution and efficient pneumatic performance.
Body Material
:
PBT (Polybutylene Terephthalate)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon/PE
Connection Type
:
Push-in
Media
:
Compressed Air, Vacuum
Color
:
Black Body with Blue Collet
