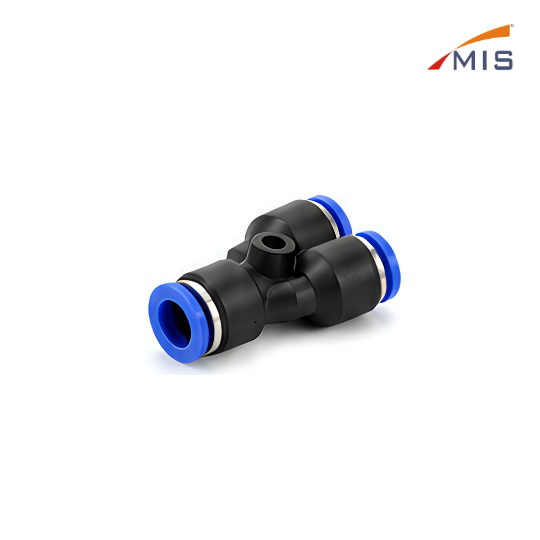

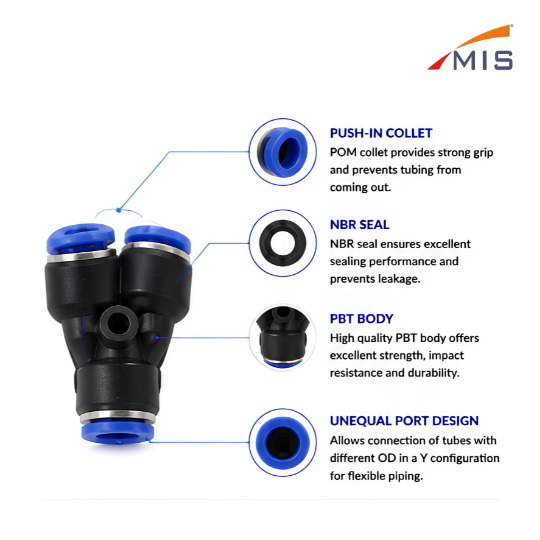

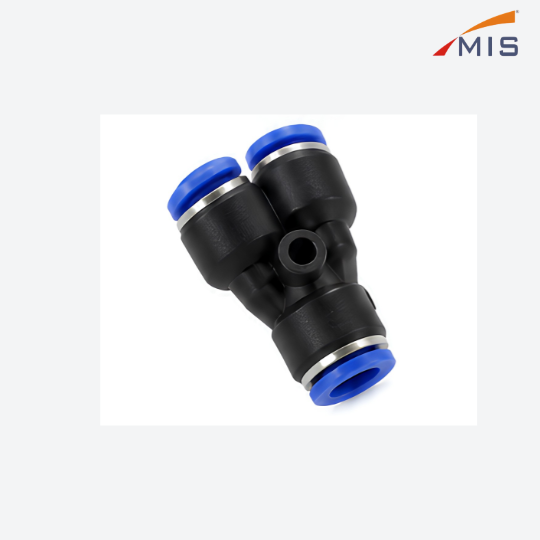

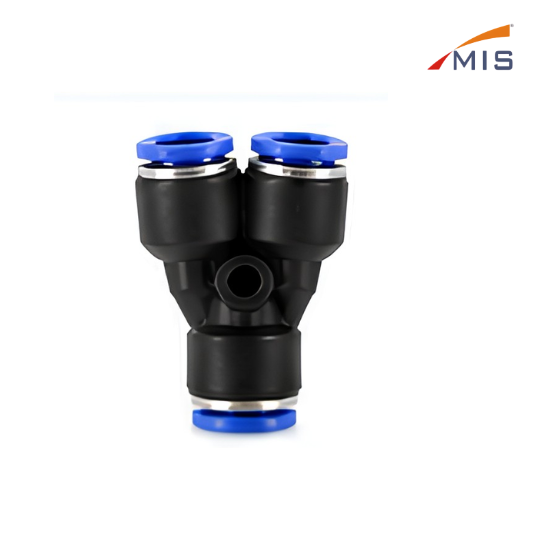

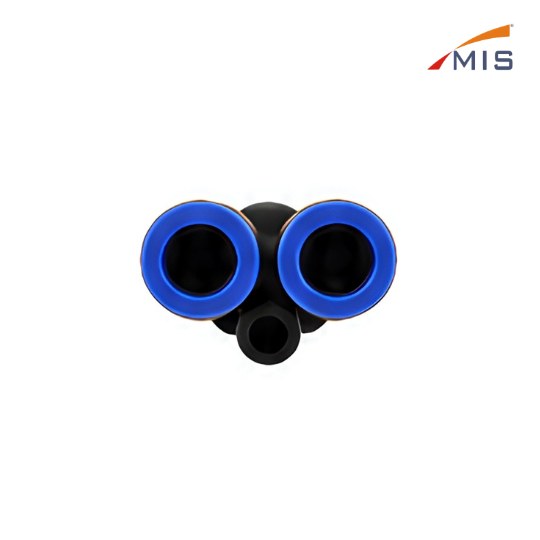

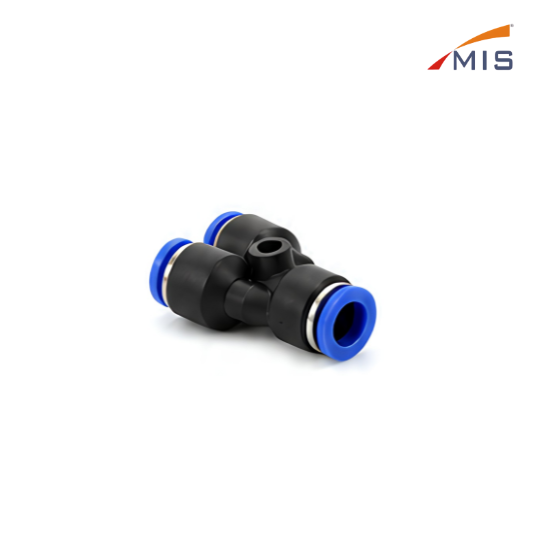

The SPN / PWY Unequal Y Connector is a push-in pneumatic fitting designed to connect tubes of different outer diameters in a Y-shaped configuration. Manufactured from high-quality engineering plastic with durable POM collets and NBR seals, it provides secure tube retention, excellent leak-proof performance, and long service life. Its compact and lightweight design allows quick installation and easy tube removal without special tools, making it ideal for space-constrained pneumatic systems. Suitable for compressed air and vacuum applications, the SPN / PWY connector is widely used in industrial automation, packaging machinery, textile machinery, automotive equipment, and machine tools, ensuring reliable airflow distribution and efficient pneumatic operation.
Body Material
:
PBT (Polybutylene Terephthalate)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon / PE
Connection Type
:
Push-in
Media
:
Compressed Air, Vacuum
Color
:
Black Body with Blue Collet
