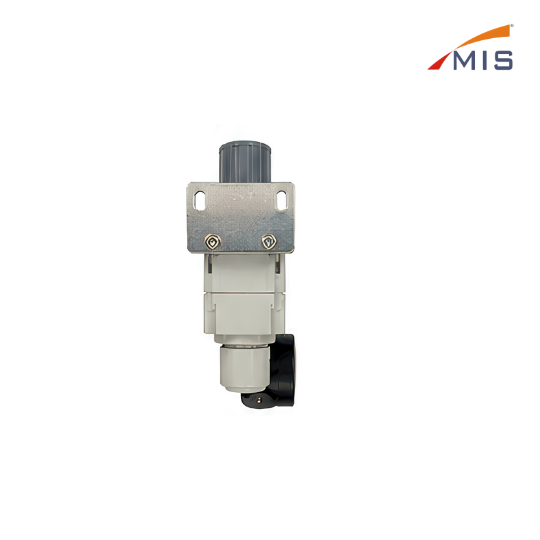

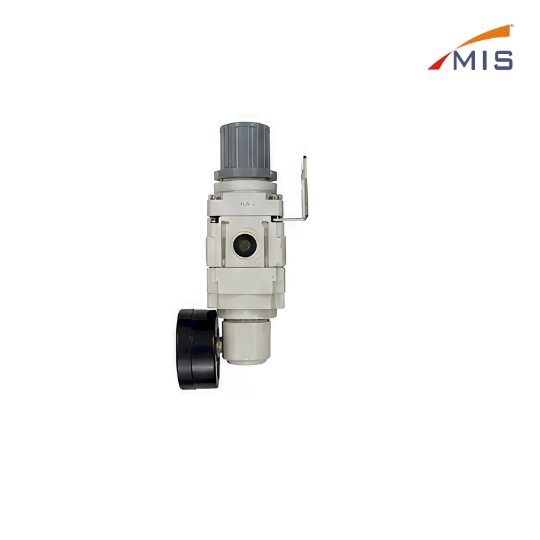

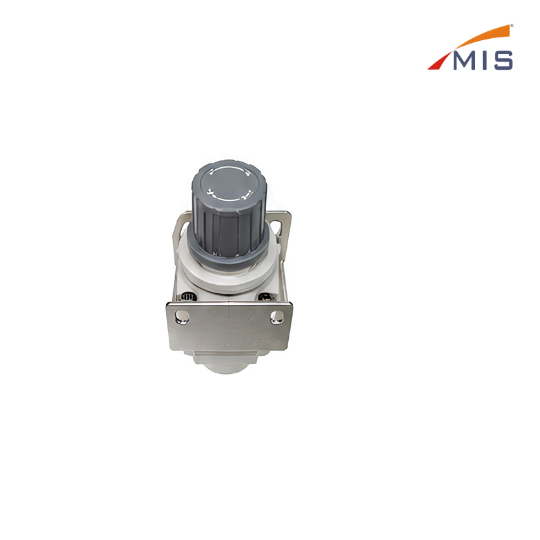

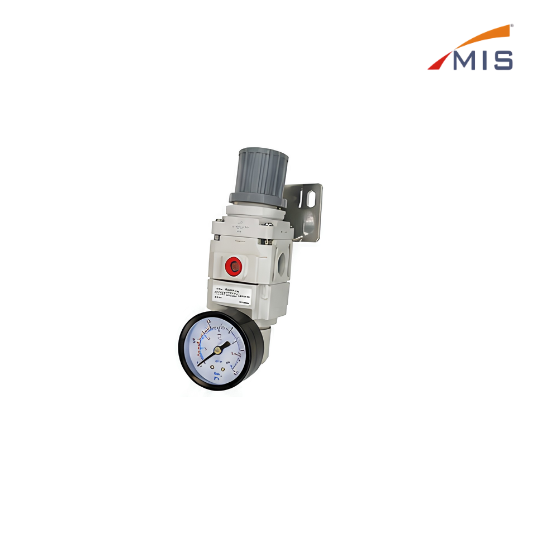

The UR Series Air Regulator is designed to provide accurate and stable air pressure regulation in pneumatic systems. Featuring a built-in pressure gauge and mounting bracket, it allows easy pressure monitoring, simple installation, and reliable performance. Its durable construction ensures long service life while protecting downstream pneumatic components from pressure fluctuations. Suitable for compressed air applications in industrial automation, packaging machinery, textile machinery, air tools, and assembly lines, the UR Series delivers efficient airflow control and dependable operation in demanding industrial environments.
Type
:
Air Regulator (Relieving Type)
Port Size (Available)
:

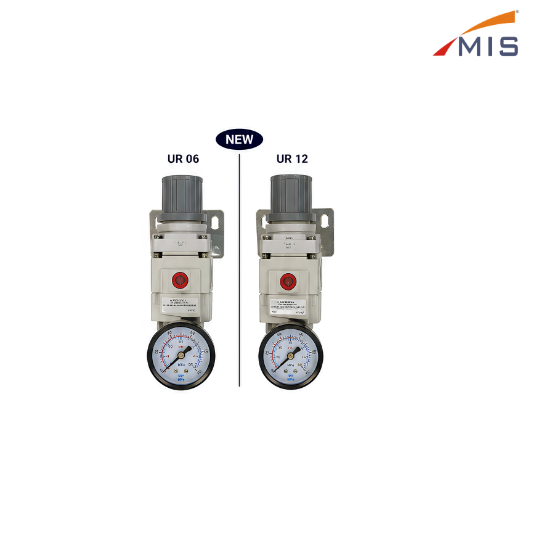

1/4" (UR 06), 1/2" (UR 12)
Max. Operating Pressure
:
1.0 MPa (10.2 kgf/cm²)
Proof Pressure
:
1.5 MPa (15.3 kgf/cm²)
Pressure Regulating Range
:
0.05 0.85 MPa (0.5 - 8.5 kgf/cm²)
Max. Operating Temperature
:
60°C
Gauge
:
Pressure Gauge (0 ~ 1.0 MPa)
Body Material
:
Aluminum Die-cast
Bowl Material
:
Polycarbonate
Mounting Type
:
Brecket Mount
Weight (Approx.)
:
UR 06: 260 g/UR 12: 370 g
