V-PIN

V-PIN

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

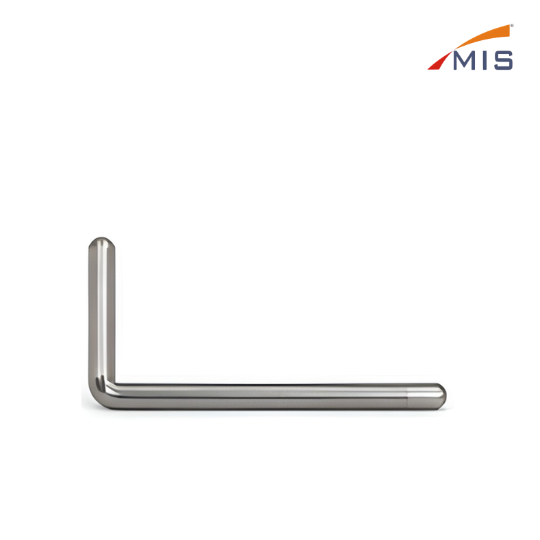

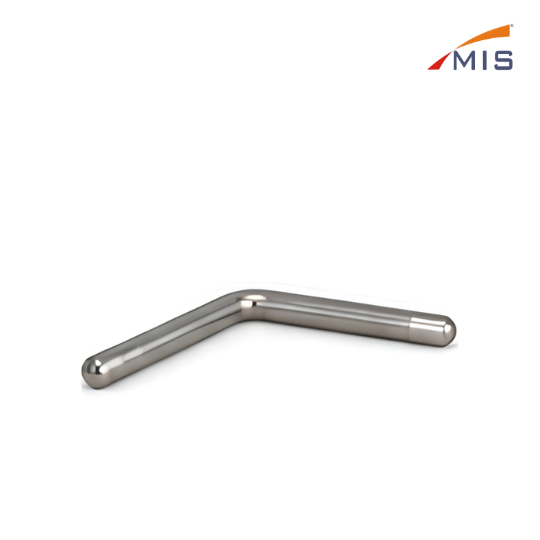

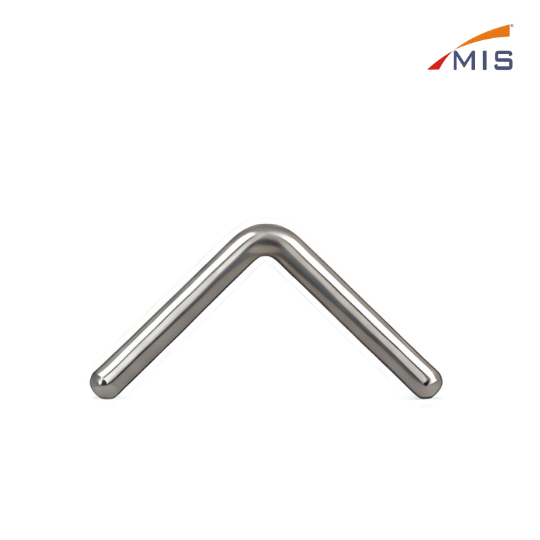

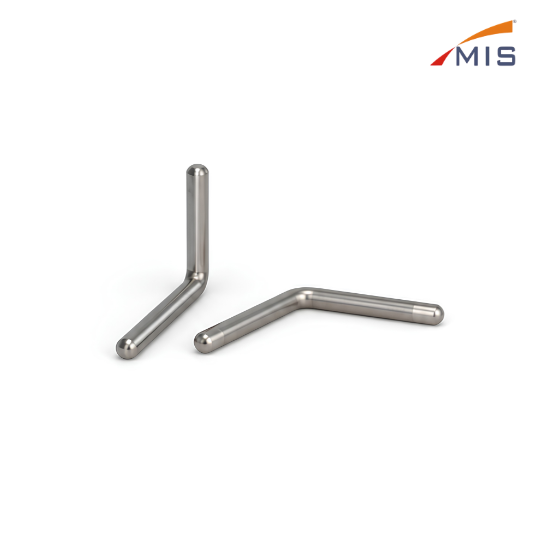

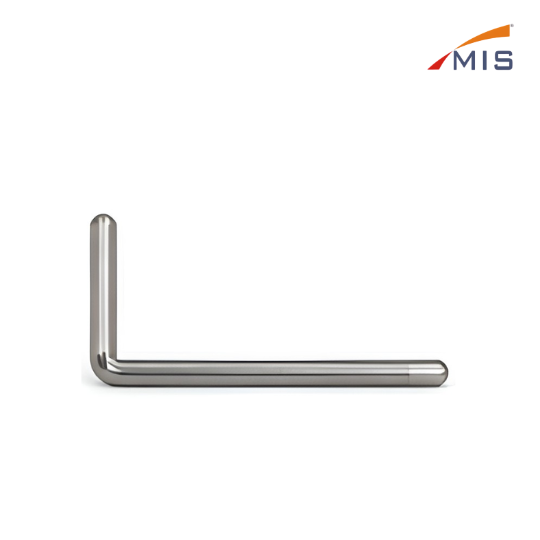

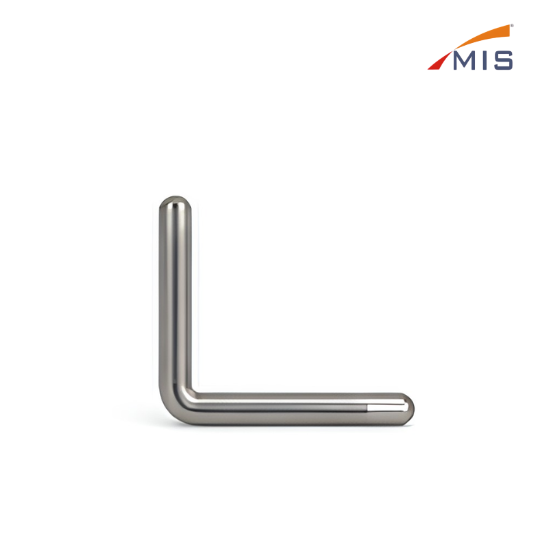

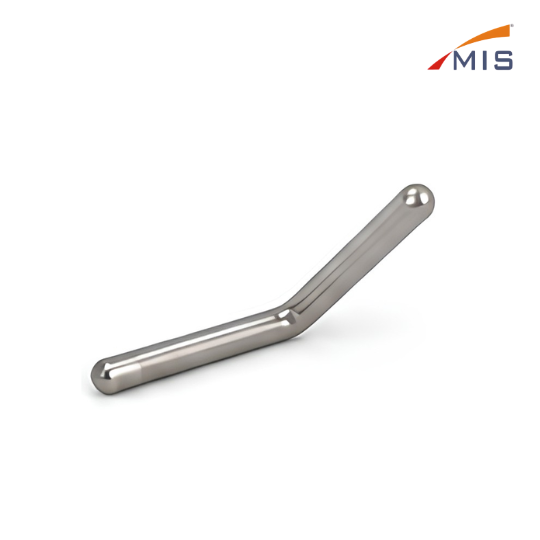

V-Pin is a V shaped locking pin used in conveyor chains, link plates, sprockets and other mechanical assemblies to provide secure locking and alignment. Its unique V shape ensures a tight and reliable fit, preventing lateral movement and accidental disengagement.

Specifications

 Also Known As
:
 V Shape Pin/V Lock Pin
 Material
:
Stainless Steel / Carbon Steel
 Surface Finish
:
 Natural / Polished
 Shape
:
V Shape

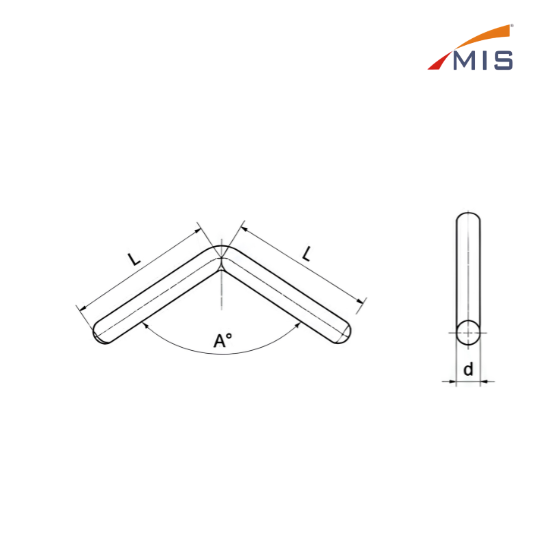

  Included Angle (A°)
:

60° (Standard)

Diameter (d)
:
3 mm to 10 mm (Standard)
Leg Length (L)
:
15 mm to 50 mm (Standard)
Tolerance
:
±0.05 mm
Hardness (Optional)
:
 HRC 25-35
Corrosion Resistance
:
Excellent (SS) Good (MS)
Application
:
 Locking & Positioning in Chain

Assemblies -

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
