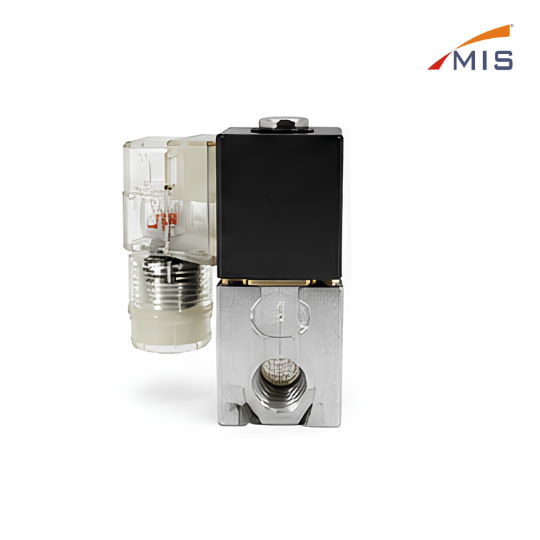

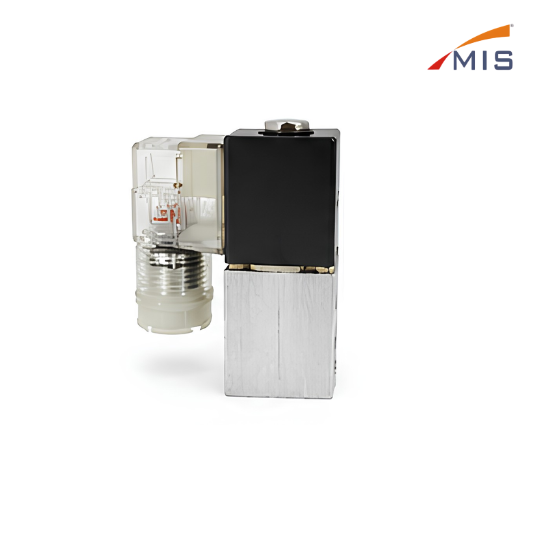

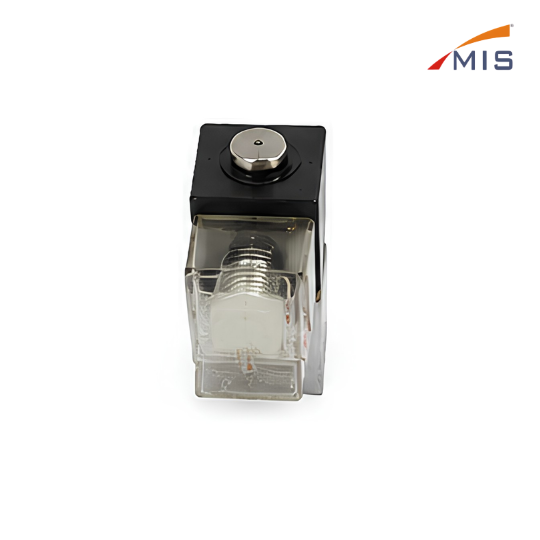

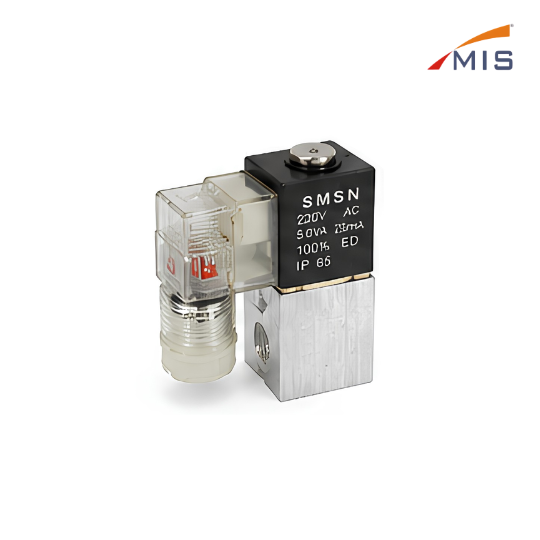

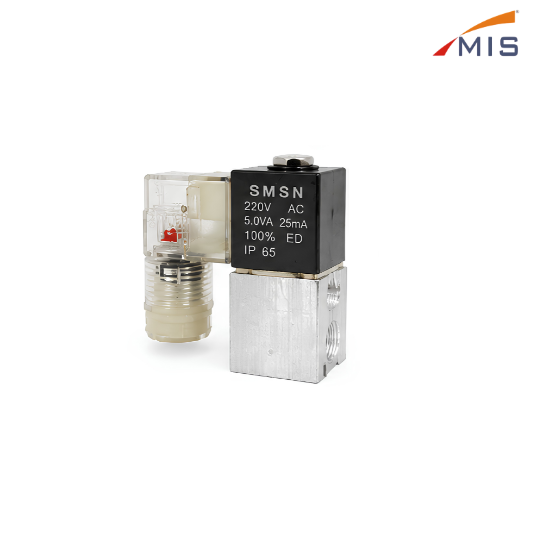

V SERIES 2/2 SOLENOID VALVE

V SERIES 2/2 SOLENOID VALVE

Size 2V-025-06B(G 1/8)"

Have questions about orders, wholesale pricing, or bulk inquiries?

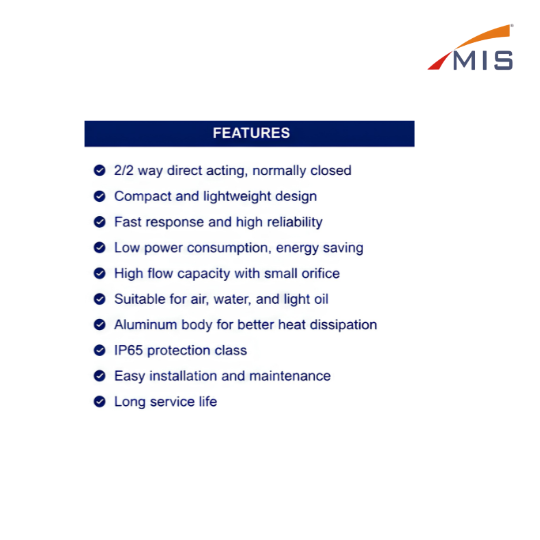

V Series 2/2 Solenoid Valve is a direct acting, normally closed solenoid valve designed for

reliable control of air, water, and light fluids. It features compact design, fast response, high flow capacity, low power consumption, and long service life. Suitable for industrial automation, water treatment, and pneumatic systems.

Specifications

Model Code

:

2V-025-06B

Valve Type

:

2/2 Way, Normally Closed

Actuation Type

:

Direct Acting

Port Size

:

G 1/8"

Orifice Size

:

2.5 mm

Cv Value

:

0.23

Working Medium

:

Air, Water, Light Oil

Operating Pressure

:

0-10 kg/cm²

Max Pressure

:

15 kg/cm²

Operating Temperature

:

-5~60 °C

Body Material

:

Aluminum Alloy

Seal Material

:

NBR

Coil Voltage

:

AC 220V 50/60Hz

Power Consumption

:

5.0VA (25mA)

Duty Cycle

:

100% ED

Insulation Class

:

Class F

Protection Class

:

IP65 (DIN 40050)

Connection Type

:

Threaded (BSPP)

Mounting Position

:

Any Position

Weight

:

Approx. 120 g
