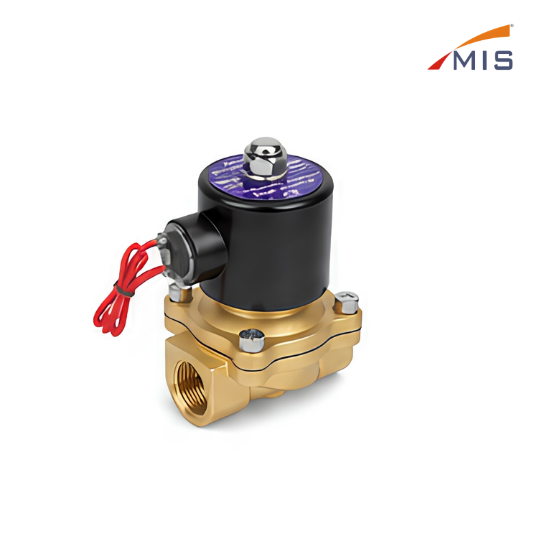

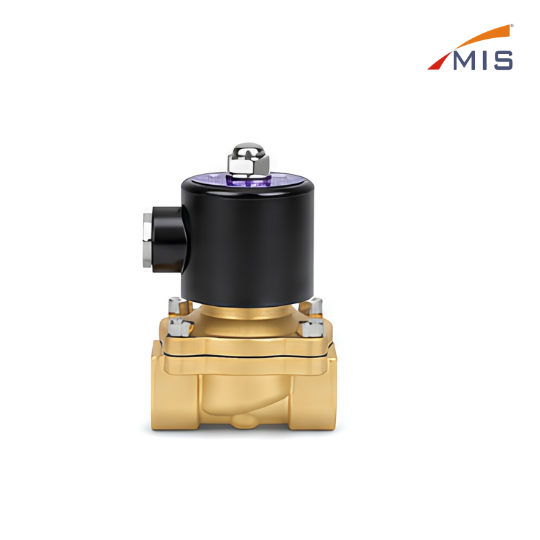

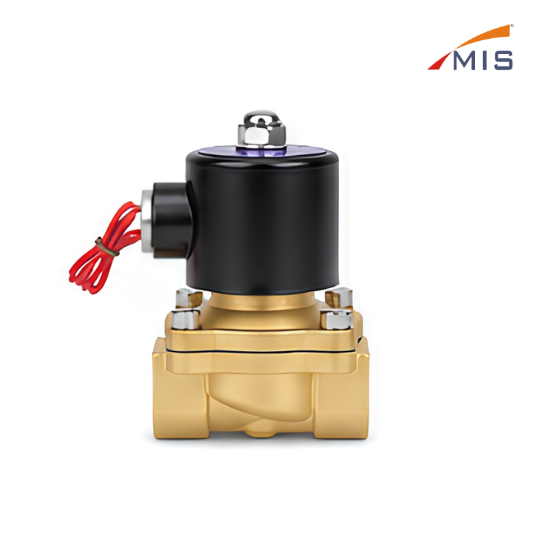

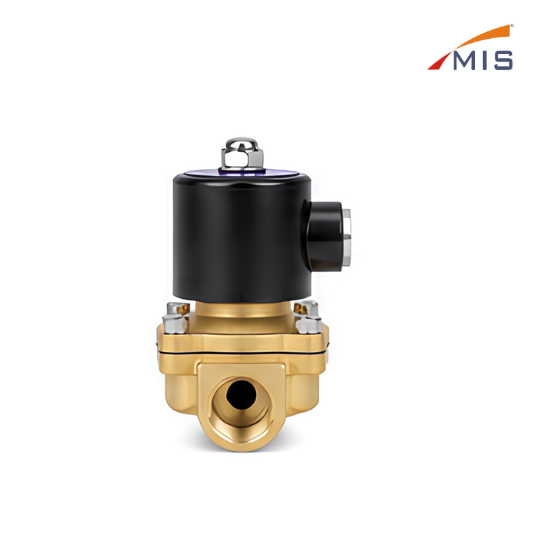

W2000 Series 2/2 direct acting solenoid valve is designed with high quality brass body for reliable performance in a wide range of applications including air, water, oil and gas.
It is normally closed (NC), opens when energized. Compact design, fast response, low power consumption and easy installation.
Specifications
Valve Type
:
2/2 Way Direct Acting, Normally Closed
Body Material
:
Brass
Actuation
:
Direct Acting
Working Medium
:
Air, Water, Oil, Gas
Operating Pressure
:
0 10 kg/cm² (Air, Water, Oil, Gas)
Max. Pressure
:
15 kg/cm²
Operating Temperature
:
-5-60 °C
Orifice Type
:
Direct Acting Poppet
Port Connection
:
BSPP (Female Thread)
Seal Material
:
NBR
Coil Insulation Class
:
Class B
Duty Cycle
:
100% ED
Voltage Options
:
AC 220V 50/60Hz, AC 110V 50/60Hz DC 24V, DC 12V (Optional)
