Y SERIES

Y SERIES

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

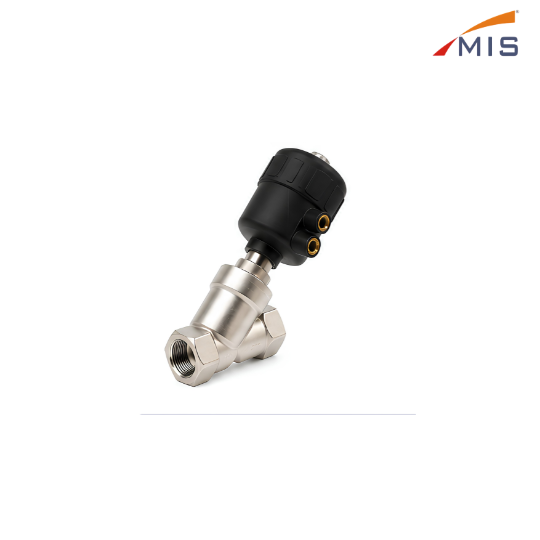

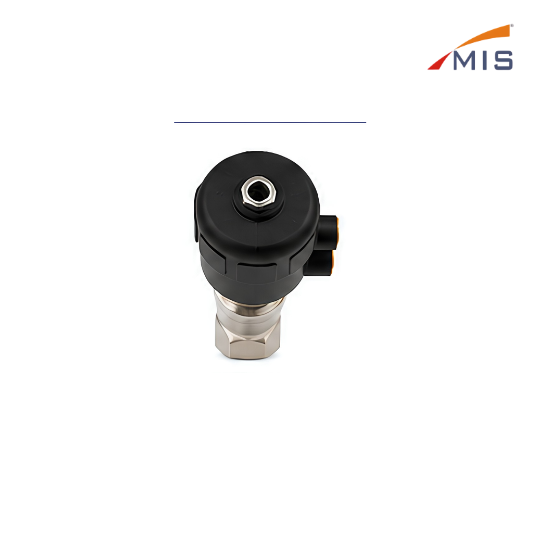

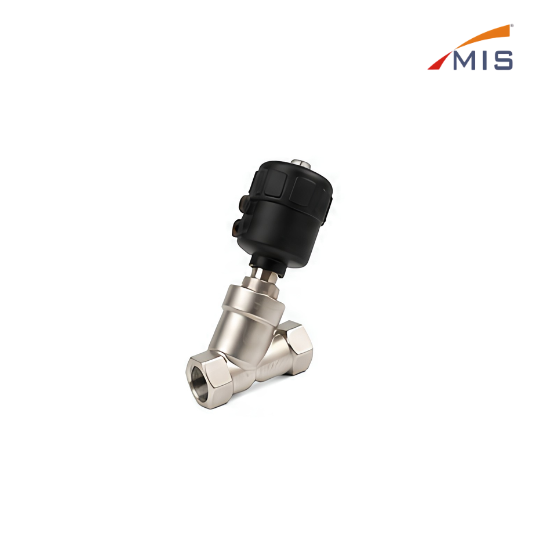

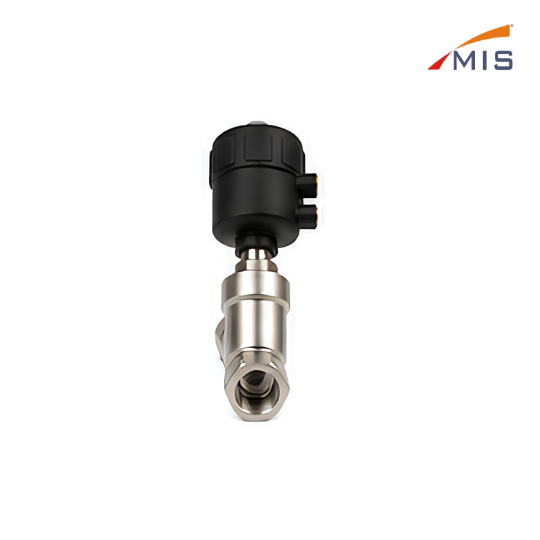

Y Series Angle Valves are single acting (normally closed) pneumatically actuated valves specially designed for steam applications up to 180°C. The Y-type design offers excellent flow characteristics and high reliability. The stainless steel body provides superior corrosionresistance and long service life in harsh environments.

Specifications

Valve Type
:
Angle Seat Valve (Y Type)
Actuation
:
Single Acting (Normally Closed)
Operation
:
 Pneumatic
 Media
:
Steam
 Max. Operating Temperature
:
180°C
 Body Material
:
Stainless Steel (S.S. 304)
 Actuator Material
:
Engineering Plastic
 Seal Material
:
PTFE
 Port Size
:
1/2", 3/4", 1" (BSPT)
 Operating Pressure
:
0 - 10 kg/cm²
 Max. Pressure
:
16 kg/cm²
 Control Pressure
:
3 - 8 kg/cm²
 Connection Type
:
Threaded (BSPT)
Mounting Position
:
Any Position
Response Time
:
<1 Sec
Fluid Temperature
:
-10°C - 180°C
 Applicable Standard
:
Designed for Steam Application
