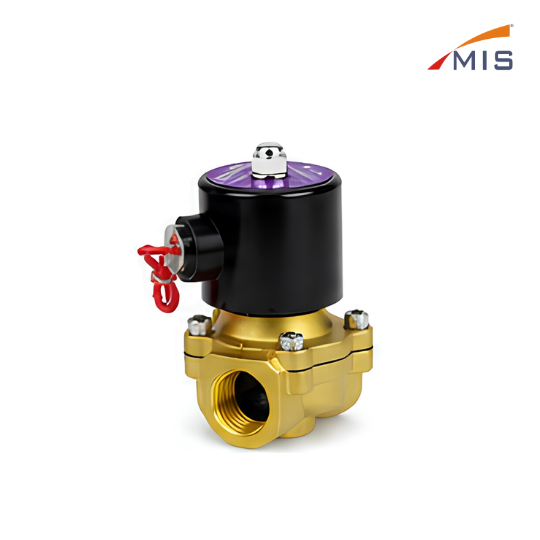

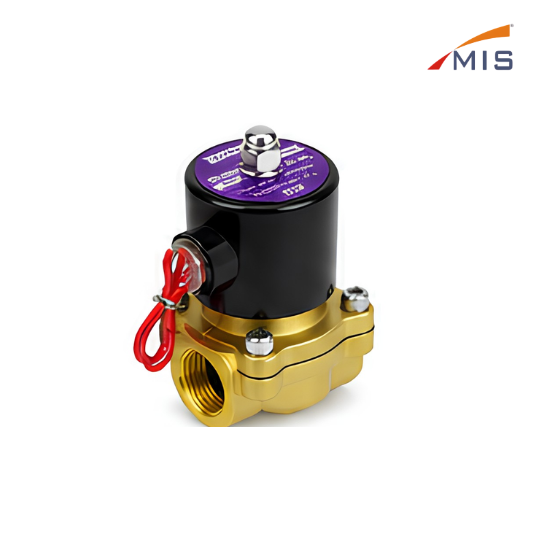

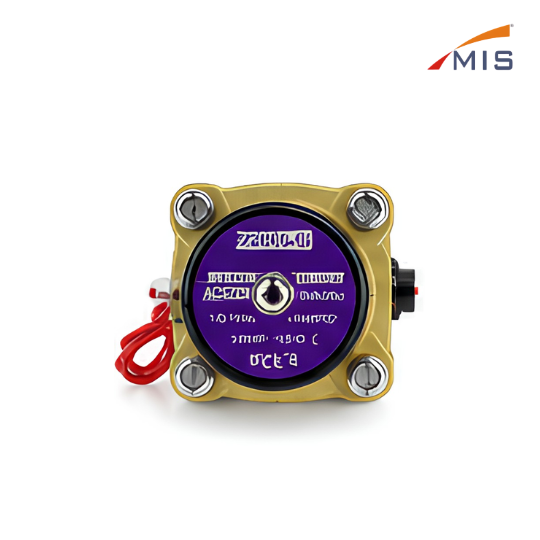

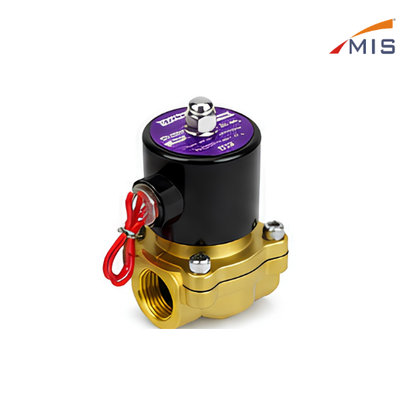

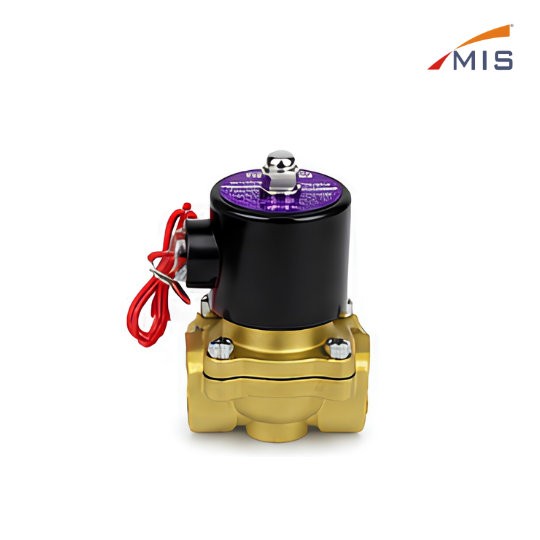

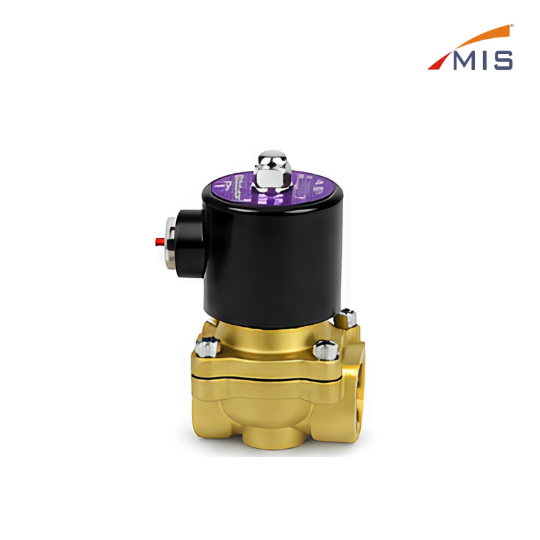

Z2000 Series 2/2 way direct acting solenoid valve is manufactured with high quality zinc body for excellent performance and durability. It is suitable for controllin air, water, oil, and gas in a wide range of industrial applications. The valve is normally closedV (NC) and opens when energized. Compact structure, fast response and long service life.
Specifications
Valve Type
:
2/2 Way Direct Acting, Normally Closed
Body Material
:
Zinc Alloy (Zamak)
Actuation
:
Direct Acting (Solenoid)
Working Medium
:
Air, Water, Oil, Gas
Working Pressures
:
0 10 kgf/cm²
Max. Pressure
:
15 kgf/cm²
Operating Temperature
:
-5~60 °C
Orifice Size
:
As per Model
Port Connection
:
BSPP (Female Thread)
Seal Material
:
NBR
Coil Insulation Class
:
Class B
Duty Cycle
:
100% ED
Voltage Options
:
AC 220V 50/60Hz, AC 110V 50/60Hz DC 24V, DC 12V (Optional)
