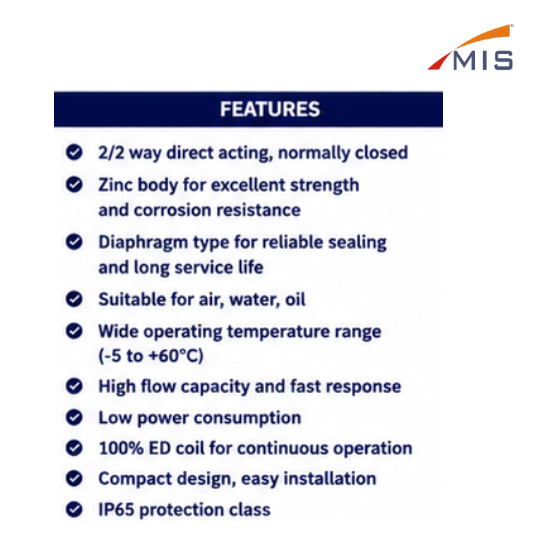

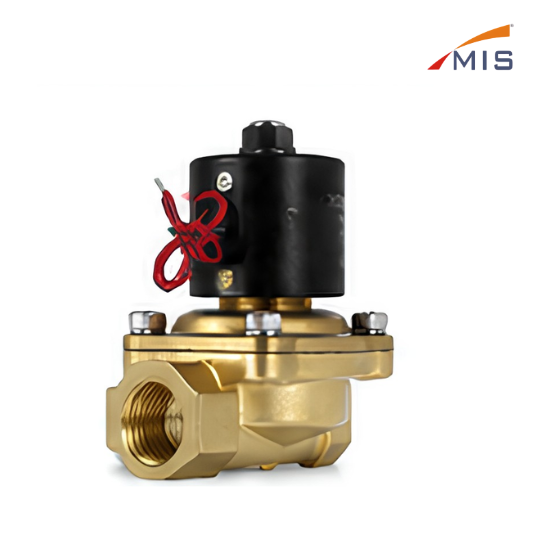

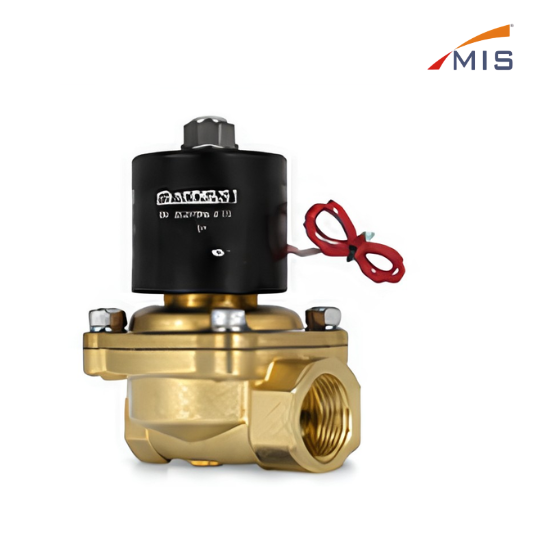

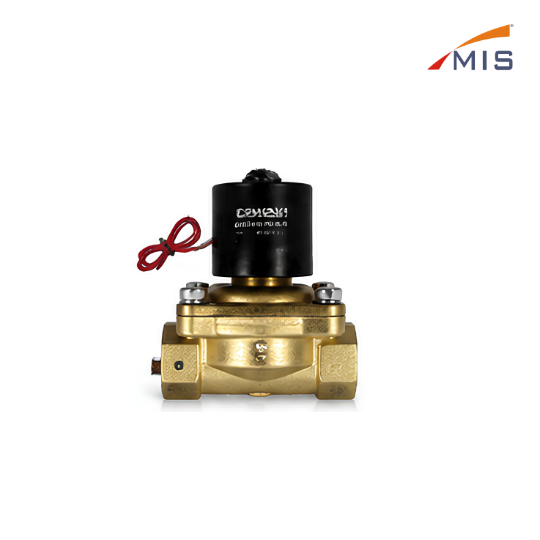

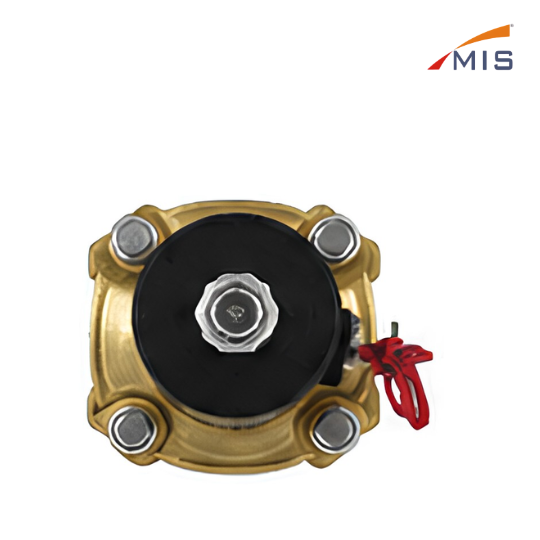

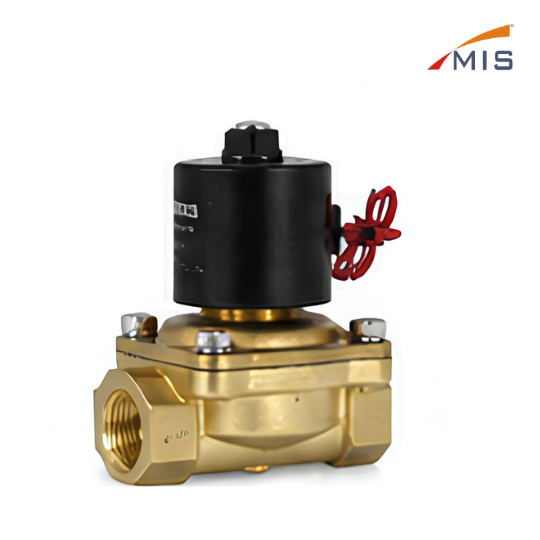

ZW100 Series 2/2 direct acting solenoid valve is designed for reliable on/off control of air, water, and oil. The valve uses a diaphragm structure for excellent sealing performance, high flow capacity, low power consumption and long service life. Suitable for a wide range of industrial applications.
Specifications
Valve Type
:
2/2 Way Direct Acting, Normally Closed
Actuation
:
Actuation
Body Material
:
Zinc Alloy (Zamak)
Seal Material
:
NBR
Diaphragm Material
:
NBR
Working Medium
:
Air, Water, Oil
Working Pressure
:
0 ~ 10 kgf/cm²
Max. Pressure
:
15 kgf/cm²
Operating Temperature
:
-5~+60 °C
Orifice Size
:
As per Model
Port Connection
:
BSPP (Female Thread)
Coil Insulation Class
:
Class B
Duty Cycle
:
100% ED
Voltage Options
:
AC 220V 50/60Hz, AC 110V 50/60Hz DC 24V, DC 12V (Optional)
