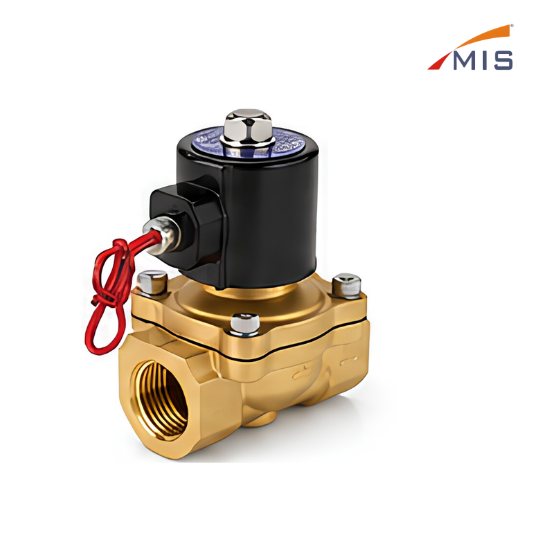

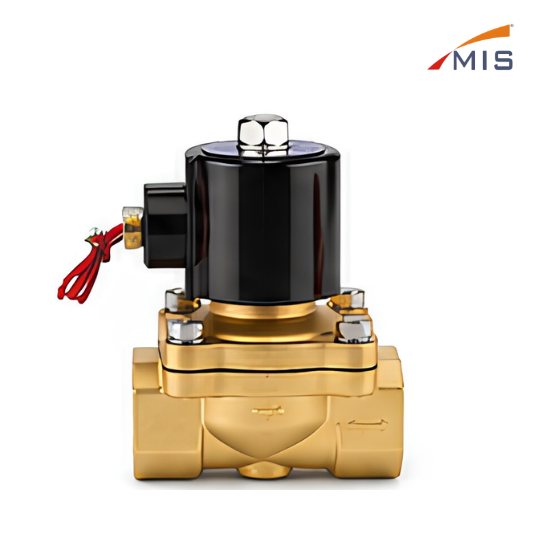

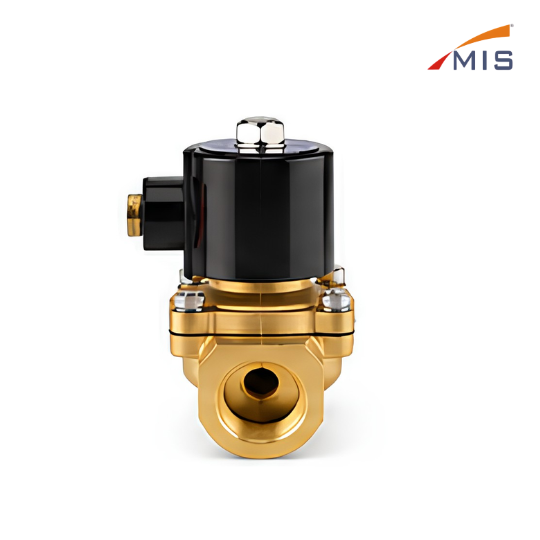

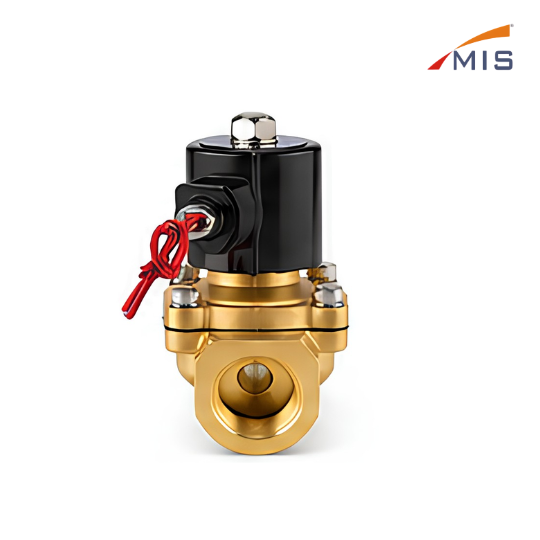

ZW20-15 Series 2/2 way direct acting brass solenoid valve is designed for reliable control of air, water, oil and other non-corrosive fluids. It is normally closed (NC) and opens when energized. The valve features a compact design, fast response, low power consumption and long service life.
Valve Type
:
2/2 Way, Direct Acting, Normally Closed
Actuation
:
Direct Acting
Working Medium
:
Air, Water, Oil
Operating Pressure
:
0 ~ 10 kg/cm²
Max. Pressure
:
15 kg/cm²
Operating Temperature
:
-5-60 °C
Port Connection
:
BSPP (Female Thread)
Coil Insulation Class
:
Class B
Voltage Options
:
AC 220V 50/60Hz, AC 110V 50/60Hz DC 24V, DC 12V
Power Consumption
:
AC 22VA, DC 18W
Protection Class
:
IP65 (DIN 40050)
Connection Type
:
Threaded
Mounting Position
:
Any Position
Weight (Approx.)
:
0.45 kg
Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
